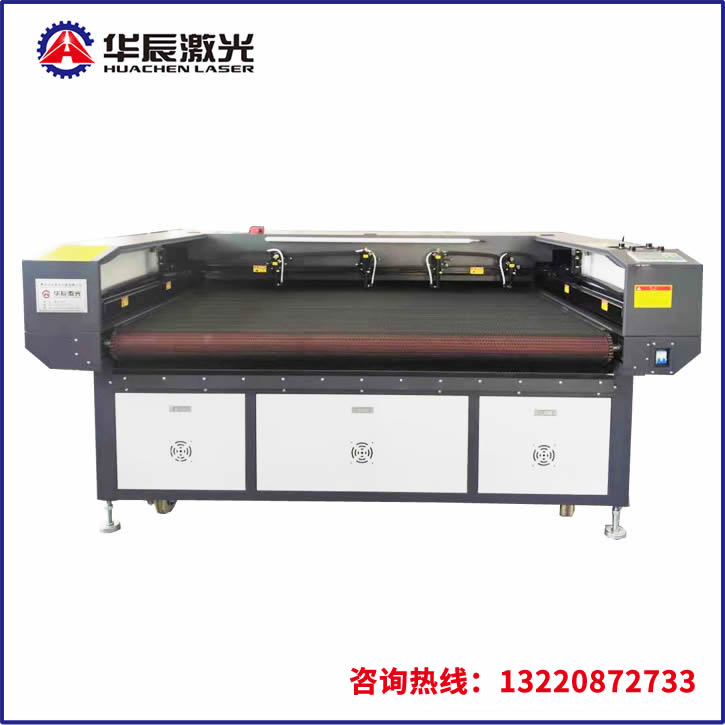

四头自动送料激光切割机

青岛华辰激光质量优性价比高工作稳定零售后标准化多功能多选择可定制...

联系电话：13220872733

产品详情

产品型号：HC-180100LD HC-160100LD HC-180140LD HC-180120LD

适用行业：

●适用于各类柔综材料
Suitable for all kinds of soft heald material
●适合毛绒玩具，制衣，商标，服装辅料，制鞋，地毯，汽车内饰，箱包，清洁用品，印刷包装等加工行业以及对自动化省时要求比较高的专业用户。
Suitable for plush toys, clothing, brand, clothing textiles, footwear, carpet, car interiors, luggage, cleaning supplies, such as printing and packaging processing industry as well as to save time for higher automation professional users.

产品特点：

●采用履带式工作台，配合送料系统（选配），可实现自动化连续加工，同时可配置智能化排版软件，加工极快速又省料，打板，改装方便，切割效率高，品质好，尤其适合贴布绣等服装面料的切割裁片。

Crawler workbench is suitable to the feed system (optional), can realize continuous processing automation, intelligent typesetting software can be configured at the same time, the process is extremely fast and save material, playing board, the modification is convenient, high cutting efficiency, good quality, especially for patch embroidered clothing fabrics such as cutting work piece.

●可对宽幅1800mm以内的各类柔性材料精细切割，激光加热，切口光洁无须边，品质高。
For all kinds of flexible material within 1800 mm wide fine cutting, laser heating, the incision is bright and clean without edge, high quality.

●根据加工需求，可配置双激光头，通过多头智能排版软件，使得加工速度更快，面料利用率更高。多种功率激光器及加工幅面可选，客户可根据自身个性加工需求配置理想的加工平台。

Dual laser head, can be configured according to processing requirements, through long intelligent typesetting software, allow fast processing speed, higher utilization rate of fabric. A variety of laser power and the processing width optional, can according to oneself individual character processing needs of customers the ideal processing platform

●产品分类（切割材料）：1，通用面料专用切割机，配普通滚筒网。2：腐蚀面料专用切割机，配不锈钢滚网。3：白面料专用切割机，配条状滚网。

Low product classification (cutting material) : 1, special cutting machine general fabrics, with ordinary drum net. 2: the corrosion of the fabric is special cutting machine, roll with stainless steel net. 3: white fabric is special cutting machine, with strip rolling.

主要技术参数：

激光类型Laser type	玻璃管封离Co2激光器	Glass tube sealing Co2 laser
激光输出功率Thelaserpoweroutput	80w/110w/130w/150w	80w/110w/130w/150w
加工幅面Processing wide	1400x900/1600x1000/1800x1000/1800x1400(mm)	1400x900/1600x1000/1800x1000/1800x1400(mm)
工作平台Work platform	履带工作平台	Bo caterpillar work platform
加工速度Processing speed	可调	adjustable
定位精度Positioningaccuracy	±0.1mm	±0.1mm
运动系统Motor system	步进/伺服运动系统	The step/servo motor system
冷却系统The coolingsystem	水循环冷却机	Water circulating cooling machine
供电电源Power supply	AC220V±5% 50/60HZ	AC220V±5% 50/60HZ
支持图形格式ForMatSupport	AI BMP PLT DXF DST 等	AI BMP PLT DXF DST etc
标配The standard	微型空压机，55W下抽烟机2台，自动升降	Under the miniature air compressor, 55 w 2 smoke machines, automatic lifting

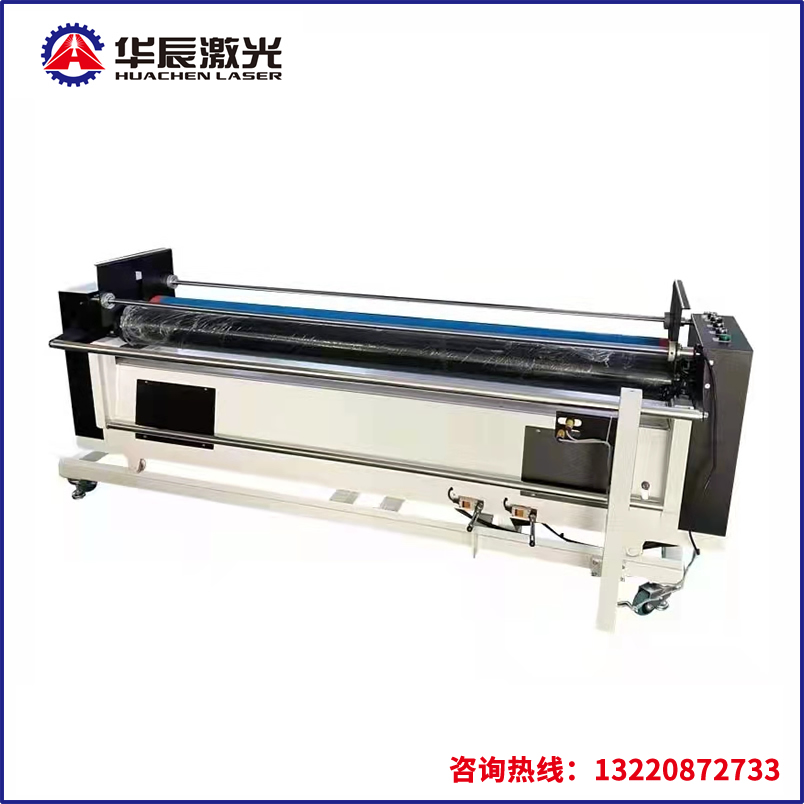

选配optional	简单挂料支架，自动送料装置，多头智能排版，工作台罩	Simple hanging bracket, automatic feeding device, bull intelligent layout, table cover
型号model	净尺寸（长宽高单位：mm）LWH Unit::mm	重量（KG）
160100LD	248020801200	500
180100LD	265021201200	600
180120LD	265023201200	650
180140LD	265025001200	700
